EAnalysis

EAnalysis is a Mac software created specifically for the analysis and representation of sound-based music, i.e., electroacoustic music.

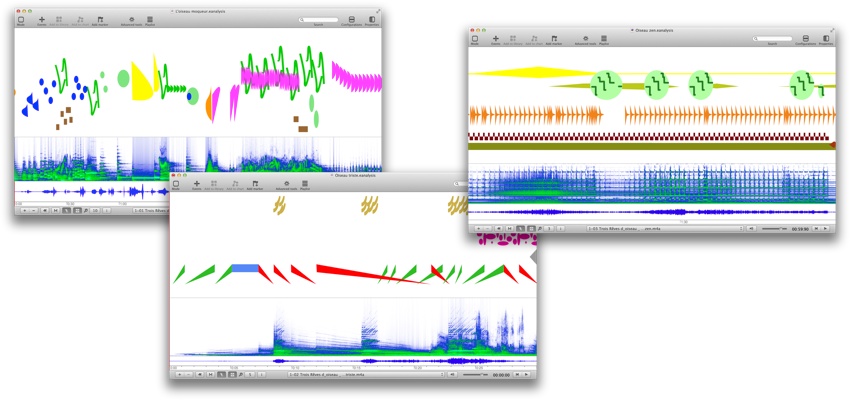

Here, for example, is how you can represent parts of three pieces by François Bayle: L’oiseau moqueur, L’oiseau triste, and L’oiseau zen from Trois rêves d’oiseau.

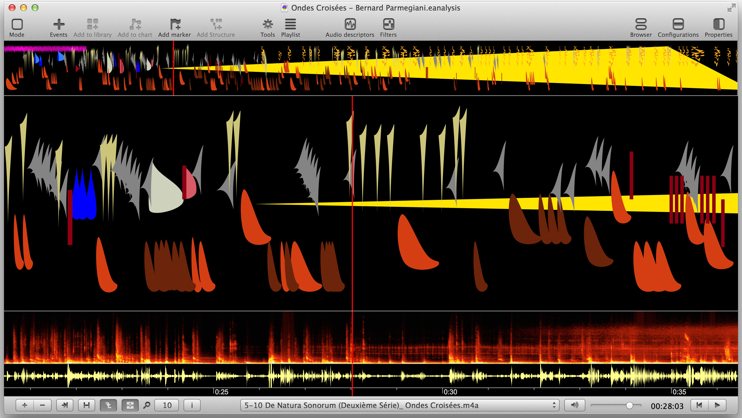

In each screen, we can see the sonogram and waveform at the bottom, while a graphic representation of the sound events is created at the top. This representation is not automatic, but the software has tools to identify and mark sound events (essentially a form of segmentation). It can also import data from other software such as Sonic Visualizer, Audiosculpt, Acousmographe, Pro Tools, etc.

Eanalysis

Download EAnalysis.

Attention: The current version does not work with Yosemite (as does most Macs).

More information on the site:

Research and development: Dr Pierre Couprie. Coordination: Prof Simon Emmerson & Prof Leigh Landy

The development of EAnalysis is part of the research project entitled ‘New multimedia tools for electroacoustic music analysis’ at the MTI Research Centre of De Montfort University (Leicester, UK). The project is funded by the Arts and Humanities Research Council (AHRC).

This piece of software aims at experimenting new types of graphic representations and new analytical methods with an intuitive interface and adapted tools for analysis purposes.

Features

Visualise sonogram (linear or logarithmic) and waveform.
Import several audio and/or movie files to analyse multitrack works or compare different works.
Create beautiful representations with graphic events on different layers.
Analyse with analytical events and sound/musical parameters.
Create your own analytical lists of parameters and share them.
Annotate during playback with time text.
Use graphic tablet or interactive whiteboard to draw representation.
Use several types of views in the same interface.
Create charts and maps from sound extracts: paradigmatic chart, generative tree, soundscape map, etc.
Create synchronised slideshow.
Create layers of sonograms from several tracks to analyse space motions, difference between versions of same work, or different works.
Save configurations (snapshots).
Import data from other software like Sonic Visualiser, Audiosculpt, Acousmographe, etc.
Import Pro Tools information sessions and create graphic representation from sound clips.
Export to images, movies, and text files (txt, csv, xml, json).
Export without media to share analysis without copyright restrictions.
